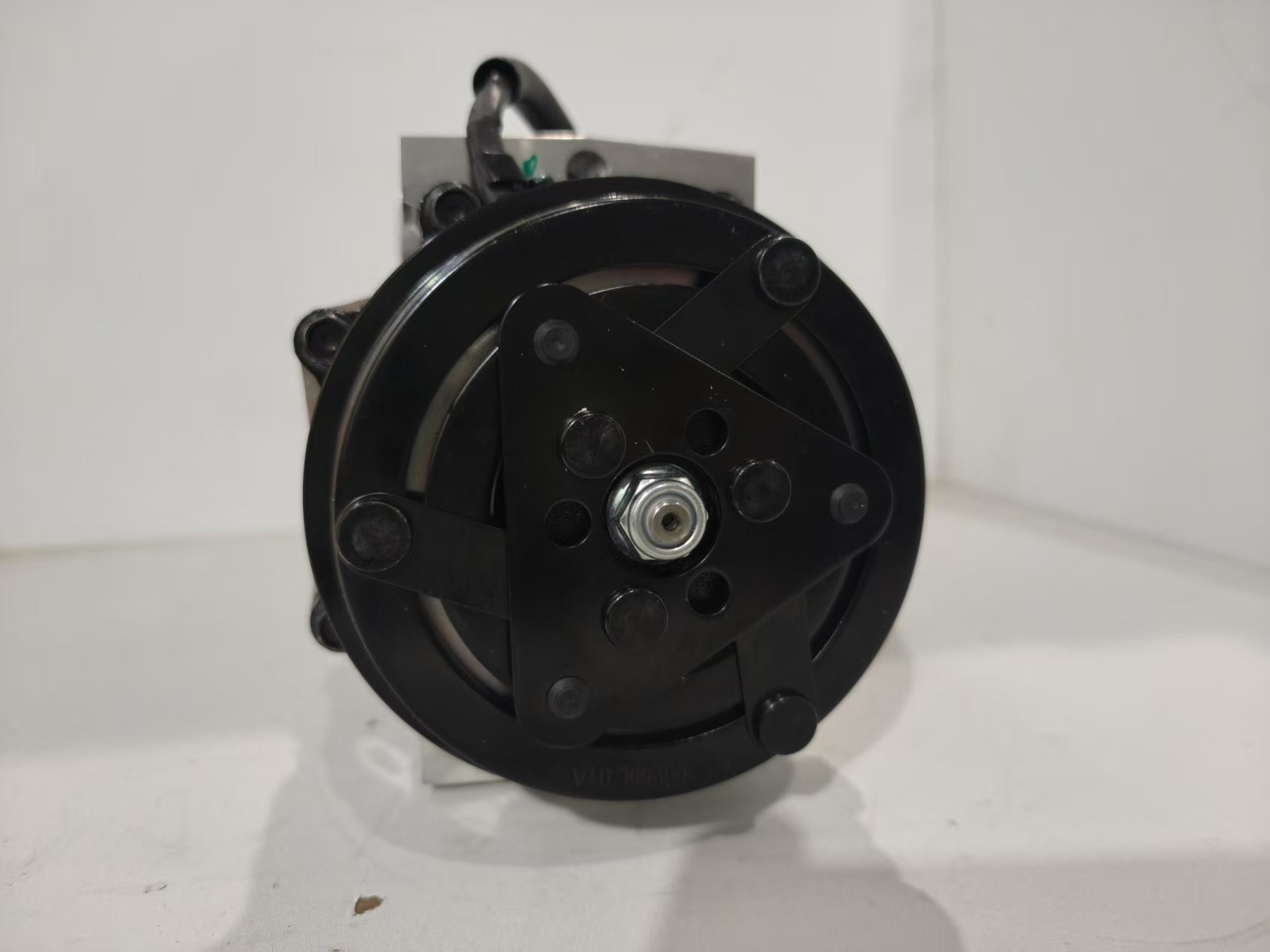

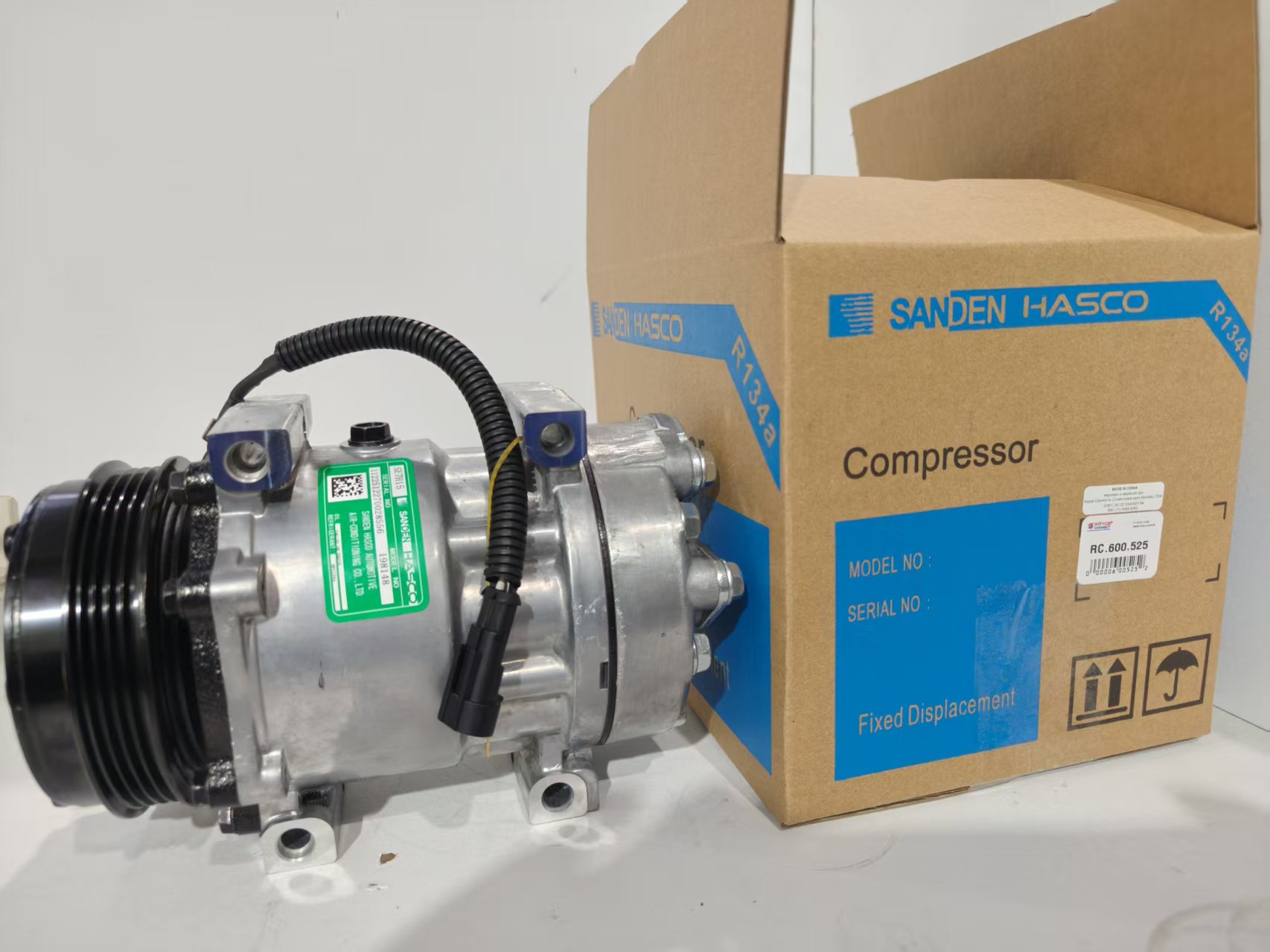

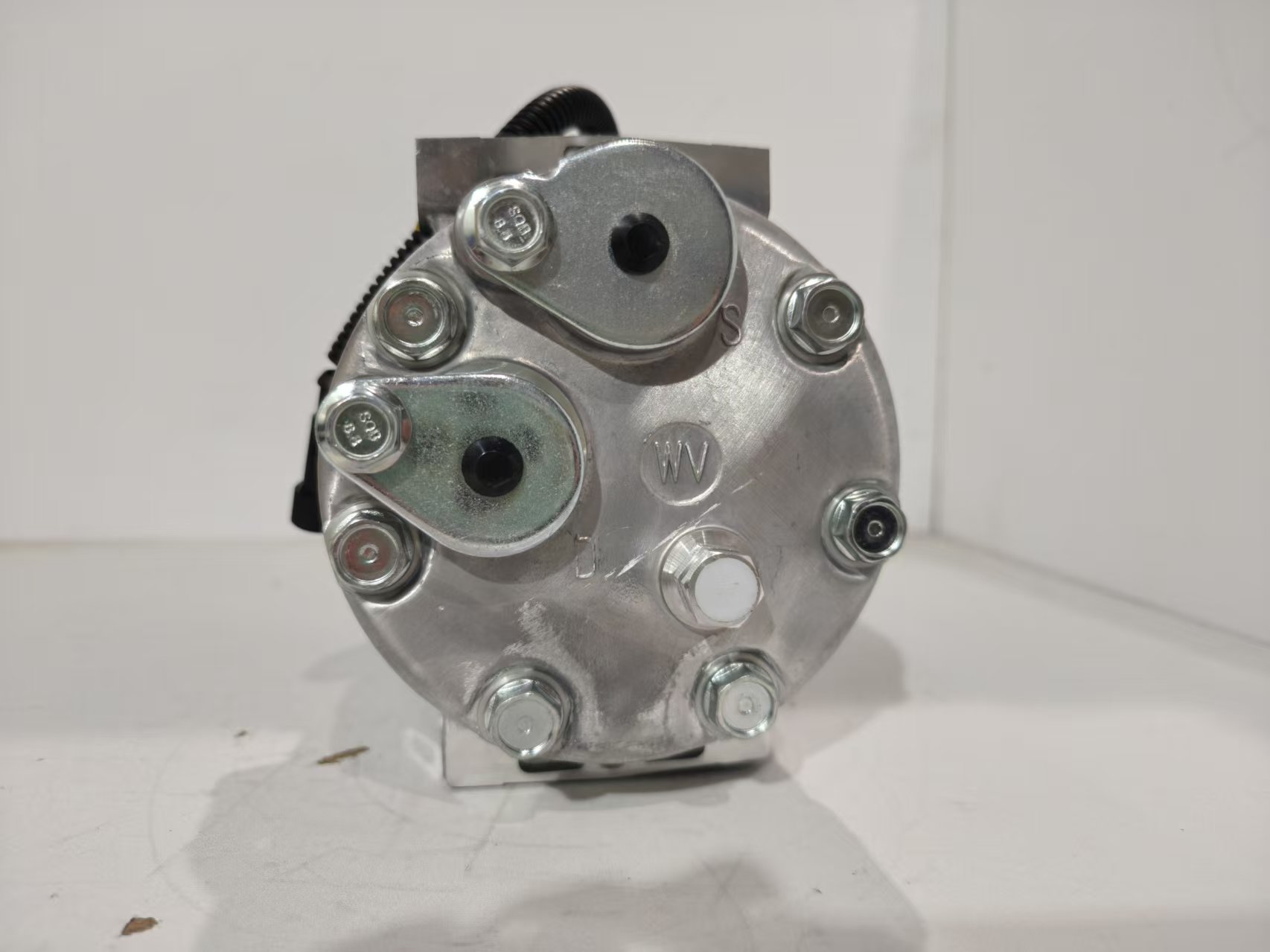

7H15-198148
| Sanden Hasco Series | 7H15 |
| Sanden Hasco Model | 198148 |
| Style | Single-directional inclined disc variable displacement compressor |
| Mount Type | 4 point |
| Ear ID | 4*80 |
| Refrigerant | R134a |
| Displacement | 154.9cm3/r |
| Rotation Direction | CW |
| Oil Qty (cc) | 180 |
| Cylinder Head | die casting |
| Port Angle | axially backward on the rear cover |
| Port Clocking | Rear |
| Head Port Style | O-ring |
| Rotor Size | 112 |
| Rotor Groove | PV4 |
| Gauge Line to Middle Groove | 39.4 |
| Coil Voltage | DC12V |
| Connector | AMP282109-1/AMP282104-1/AMP281934-2 |
| Vehicle | Case IH MXU 100, Case IH MXU 110, Case IH MXU 115, Case IH MXU 125, Case IH MXU 135, New Holland TS 100 A, New Holland TS 115 A, New Holland TS 125 A, New Holland TS 130 A |
