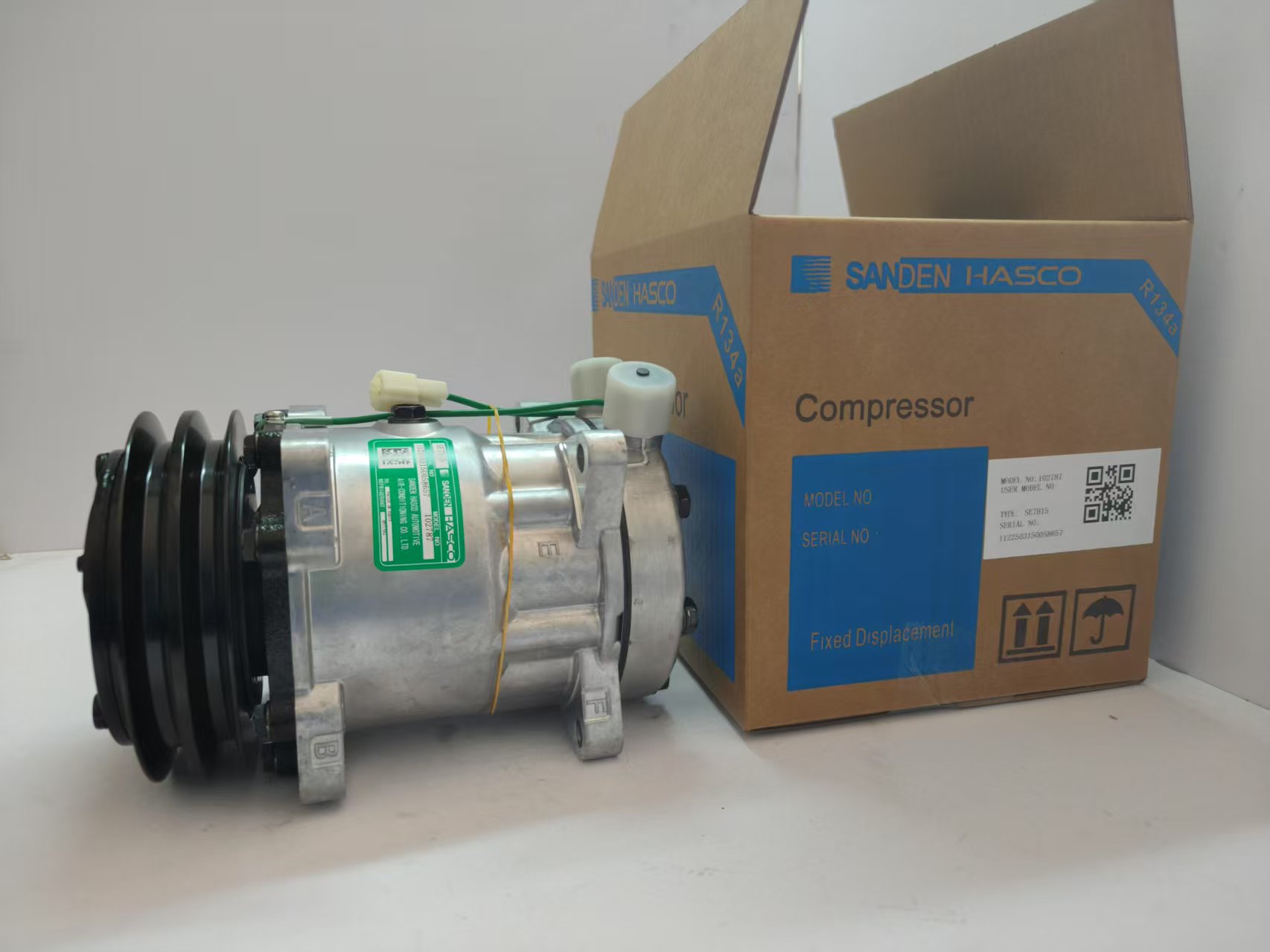

7H15-102787
| Sanden Hasco Series | 7H15 |
| Sanden Hasco Model | 102787 |
| Style | Single-directional inclined disc variable displacement compressor |
| Mount Type | Ear 8 long |
| Ear ID | 83.3 |
| Refrigerant | R134a |
| Displacement | 154.9cm3/r |
| Rotation Direction | CW |
| Oil Qty (cc) | 180 |
| Cylinder Head | die casting |

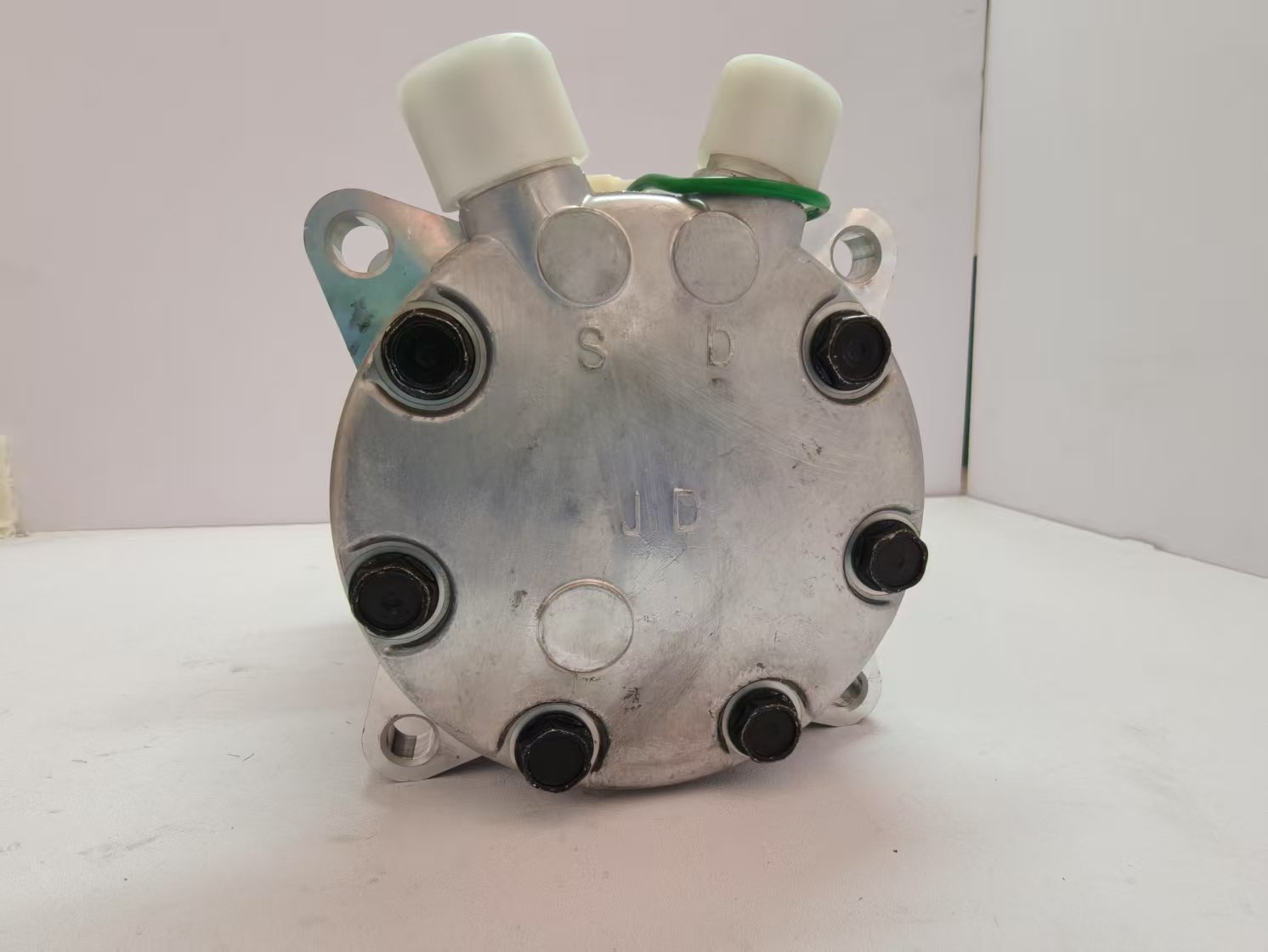

| Port Angle | upper part of the radial rear cover |
| Port Clocking | Rear |
| Head Port Style | sealing plug |

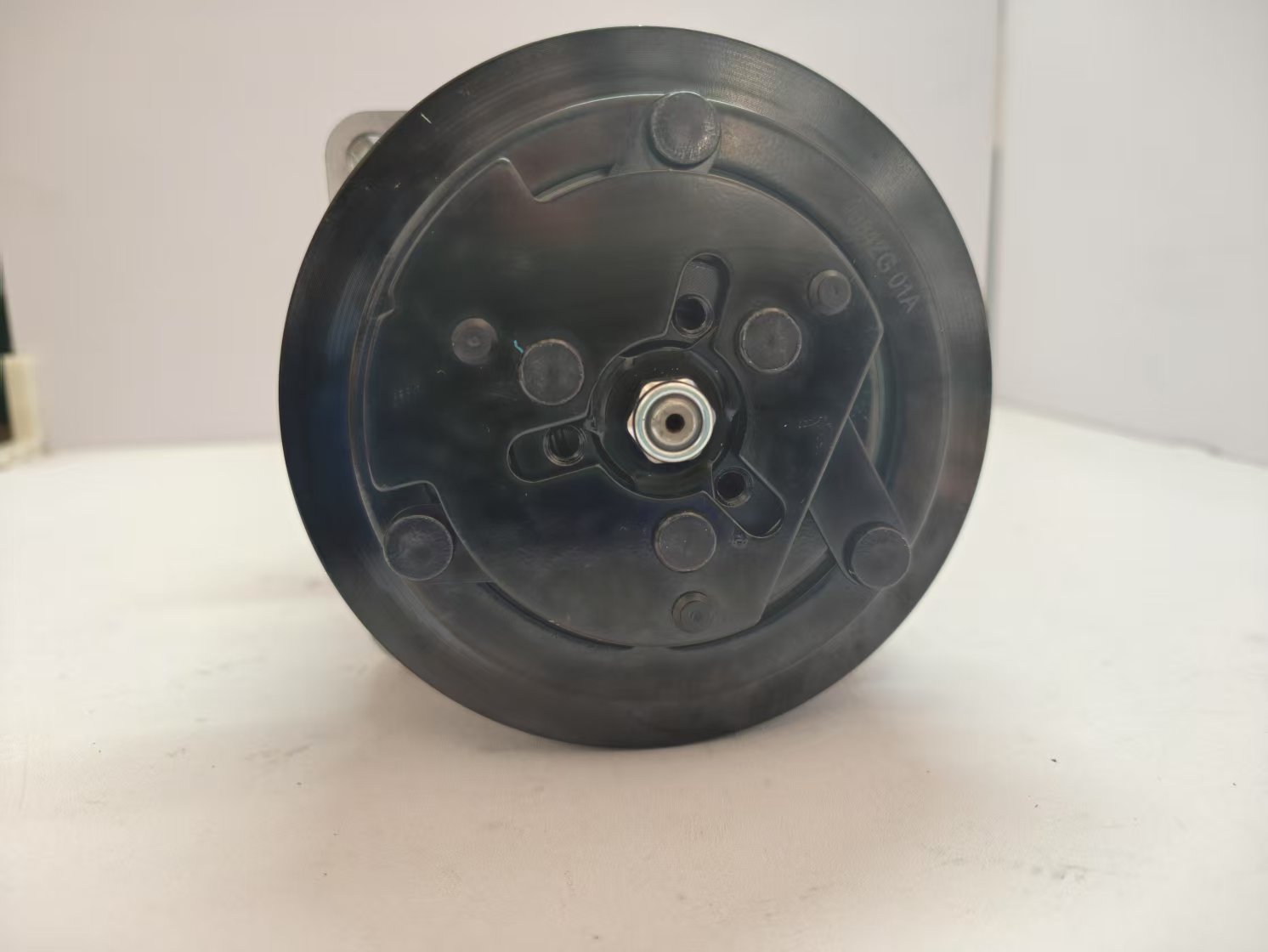

| Rotor Size | 132 |
| Rotor Groove | A2 |
| Gauge Line to End Groove | 39.55 |
| Coil Voltage | DC24V |
| Connector | DJ7011-6.3-11/DJ611-6.3 |
