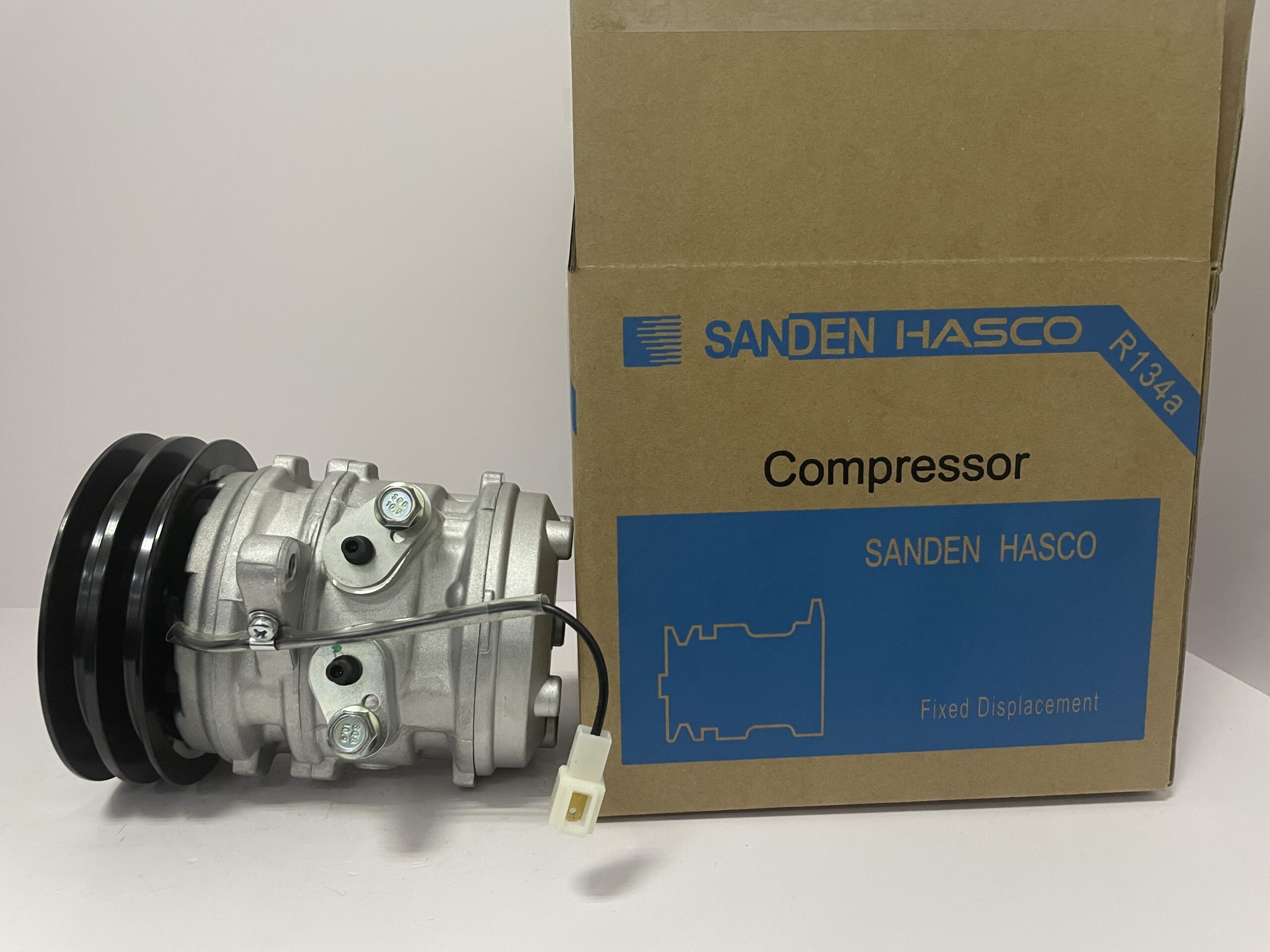

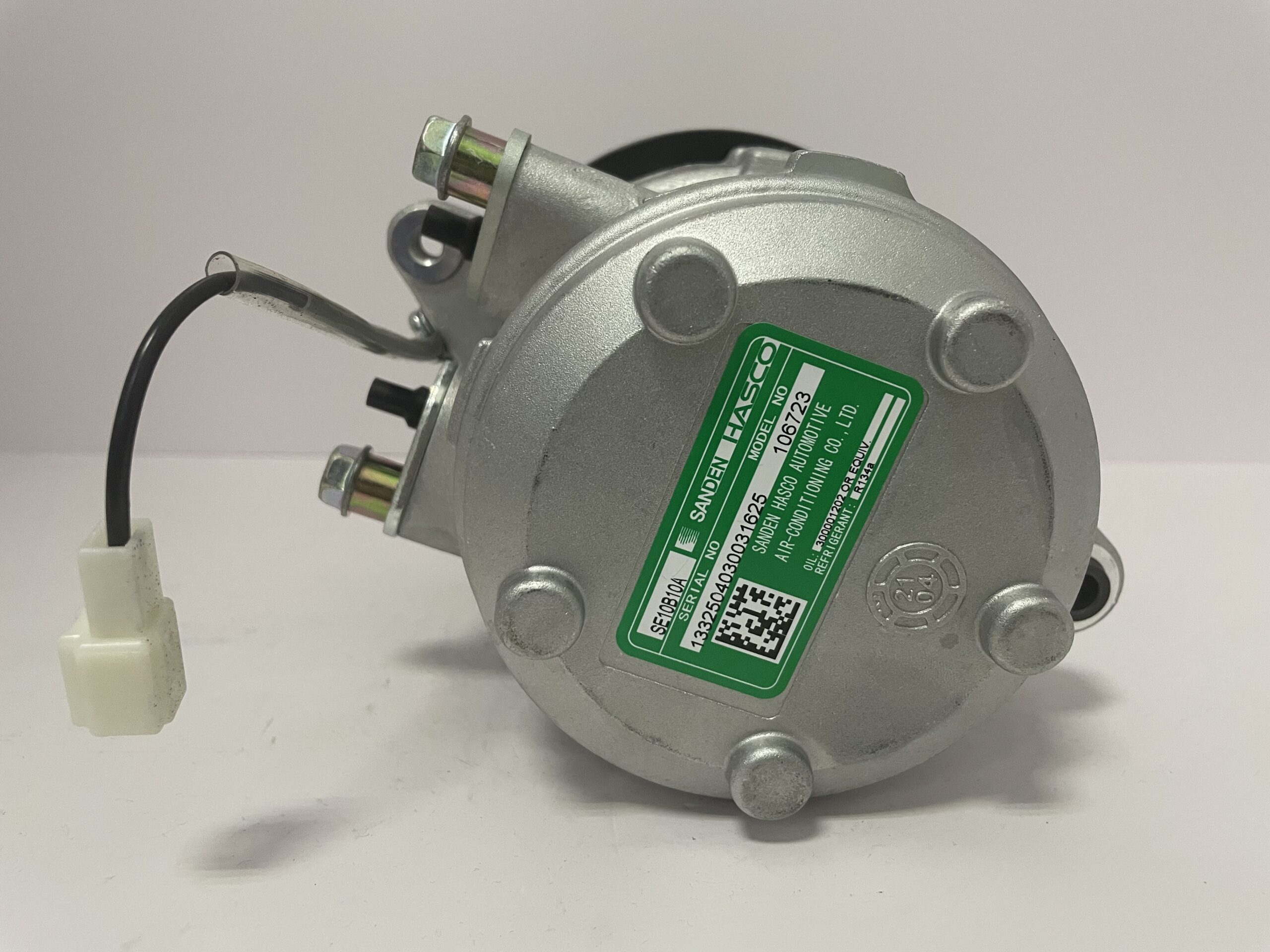

10B10-106723
| Sanden Hasco Series | 10B10 |
| Sanden Hasco Model | 106723 |
| Style | two-way inclined plate |
| Mount Type | Axial 2-point |
| Ear ID | 70 |
| Refrigerant | R134a |
| Displacement | 112.6cm3/r |
| Rotation Direction | CW |
| Oil Qty (cc) | 130 |
| Cylinder Head | die casting |
| Port Angle | Upper part of the cylinder body in the radial direction |
| Port Clocking | Upper part of the cylinder body |
| Head Port Style | sealing plug |

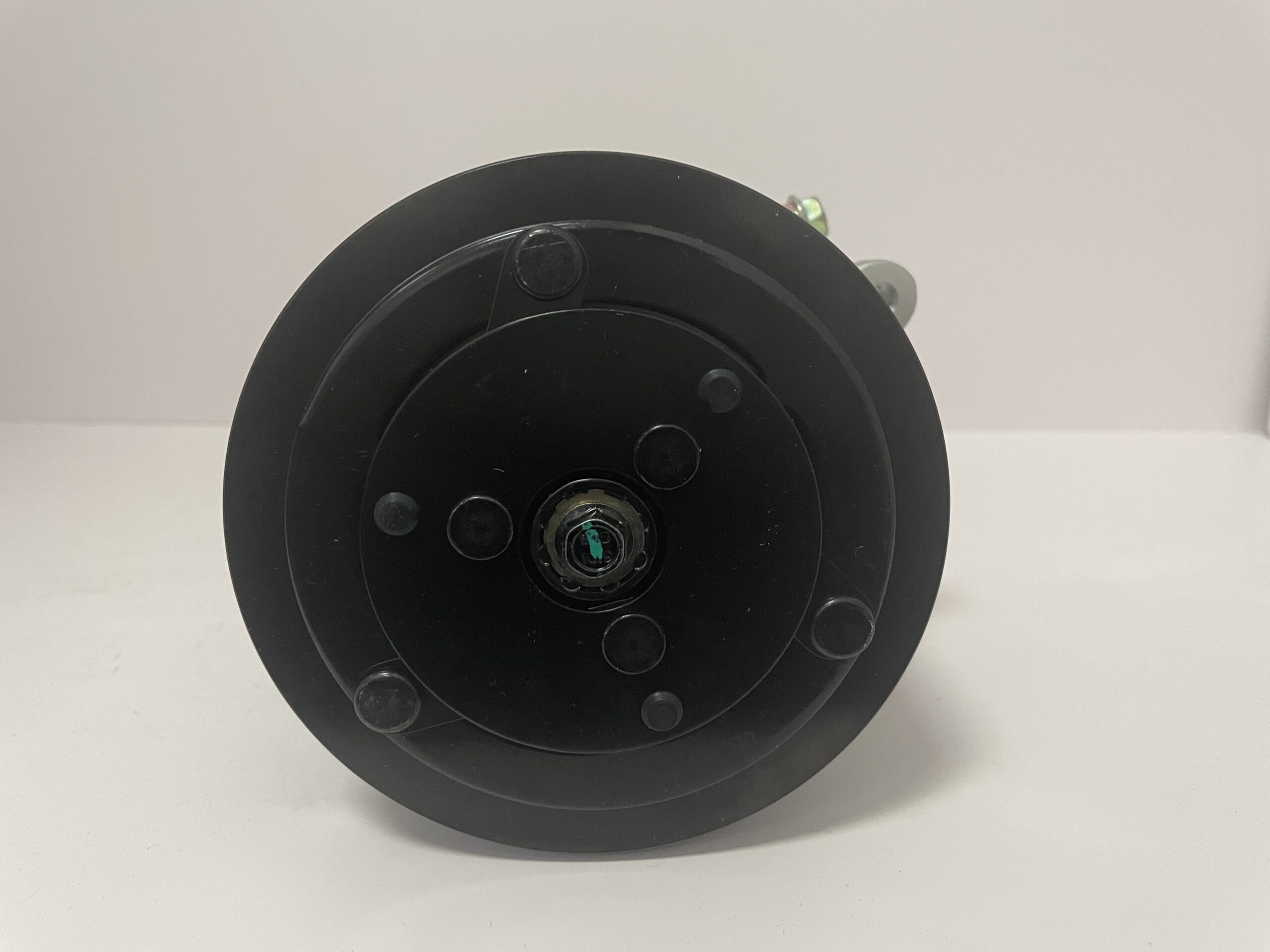

| Rotor Size | 128 |
| Rotor Groove | A2 |
| Gauge Line to Middle Groove | 34.58 |
| Coil Voltage | DC12V |
| Connector | DJ7011-6.3-11/DJ611-6.3B |
